8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 64MHz. This PDIP package microcontroller offers 32KB of FLASH memory and 1.5KB of RAM, with 36 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 14 ADC channels, and 5 PWM channels. Operating within a voltage range of 1.8V to 3.6V, it supports through-hole mounting and operates from -40°C to 85°C.
Frequency64MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC18F45K20-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Density
32KB
Frequency
64MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Through Hole
Number of ADC Channels
14
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F45K20-I/P Datasheet
Download the complete datasheet for Microchip PIC18F45K20-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

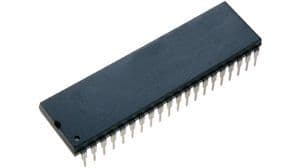

Product Images
