8-bit RISC microcontroller featuring 32KB FLASH memory and 1.5KB RAM. Operates at up to 64MHz with I2C, SPI, and UART interfaces. Offers 35 I/Os, 30 ADC channels, and 7 timers. Packaged in a 40-pin PDIP, this RoHS compliant component supports a wide operating temperature range of -40°C to 125°C.
Frequency64MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18F45K22-E/P technical specifications.
General
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Height | 0.195inch |
| Interface | I2C, SPI, USART, UART |
| Length | 53.21mm |
| Max Frequency | 64MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 32KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Number of ADC Channels | 30 |
| Number of I/Os | 35 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 36 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 7 |
| Packaging | Rail/Tube |
| Peripherals | PWM |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F45K22-E/P Datasheet
Download the complete datasheet for Microchip PIC18F45K22-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

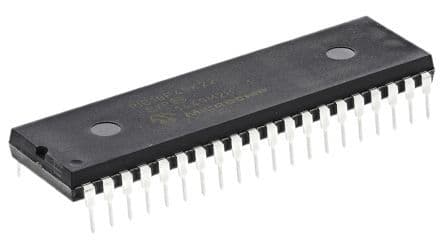

Product Images
