8-bit RISC microcontroller featuring 64MHz operation, 32KB FLASH memory, and 1.5KB RAM. This PDIP-packaged MCU offers 35 I/O pins, including 36 programmable I/Os, and supports I2C, SPI, and UART interfaces. Integrated peripherals include 14 PWM channels, 7 timers/counters, and 30 ADC channels across 2 A/D converters. Operating from 1.8V to 5.5V, it functions within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency64MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18F45K22-I/P technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 64MHz |
| Height | 0.195inch |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 2.095inch |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 2 |
| Number of ADC Channels | 30 |
| Number of Bits | 8 |
| Number of I/Os | 35 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 36 |
| Number of PWM Channels | 14 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 7 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18K |
| Watchdog Timer | Yes |
| Width | 0.58inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F45K22-I/P Datasheet
Download the complete datasheet for Microchip PIC18F45K22-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

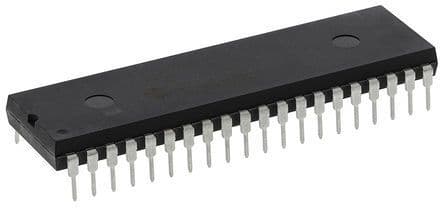

Product Images
