8-bit microcontroller featuring 64KB FLASH memory and 3986B RAM, operating at a maximum frequency of 40MHz. This surface mount device supports I2C, SPI, and UART/USART interfaces, with 36 programmable I/Os and 13 analog input channels. It includes 5 PWM channels, 4 timers/counters, and integrated peripherals such as Brown-out Detect/Reset, POR, WDT, HLVD, and I2C. Packaged in a 44-pin TQFP with a 0.5mm lead pitch, it operates from 4.2V to 5.5V and is RoHS compliant.
Frequency40MHz
PackageTQFP
Current1.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications

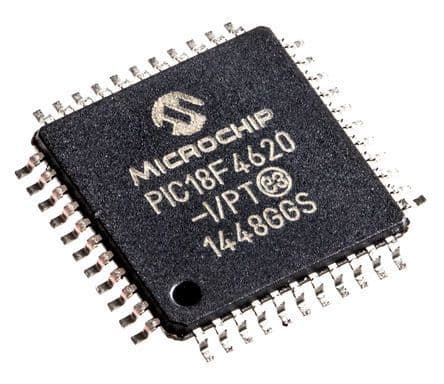

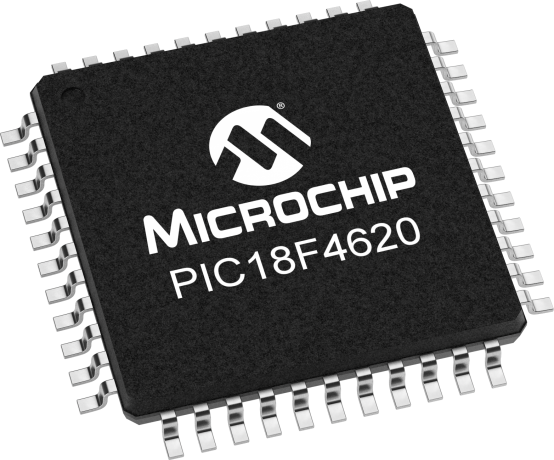

Microchip PIC18F4620-I/PT technical specifications.
General
Access Time
40us
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3986B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1.1mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4620-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F4620-I/PT to view detailed technical specifications.
