8-bit Flash Microcontroller, operating at up to 40MHz, featuring 96KB of FLASH memory and 3.25KB of RAM. This surface mount device offers 36 programmable I/O pins and supports multiple interfaces including I2C, SPI, CAN, and UART. It includes 11 A/D converter channels, 5 PWM channels, and 4 timers/counters, with integrated peripherals like Brown-out Detect/Reset, POR, WDT, and HLVD. Packaged in a 44-pin TQFP with dimensions of 10mm x 10mm x 1.05mm, this lead-free component operates within a temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F4685-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
96KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
96KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
11
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F4685-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F4685-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

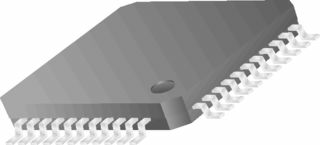

Product Images
