8-bit FLASH microcontroller featuring an 8b data bus width and a maximum operating frequency of 48MHz. This surface mount device offers 64KB of FLASH memory and 3776B of RAM. Integrated peripherals include I2C, SPI, USB, UART, USART interfaces, 8 PWM channels, and 5 timers/counters. The TQFP package measures 10mm x 10mm with a 1.05mm height, operating from 2.15V to 3.6V supply voltage.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F46J50-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, USB, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Min Supply Voltage
2.15V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
13
Number of Bits
8
Number of I/Os
22
Number of I2C Channels
2
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, DMA, Brown-out Detect/Reset, POR, WDT, I2C
Radiation Hardening
No
RAM Size
3776B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F46J50-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F46J50-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

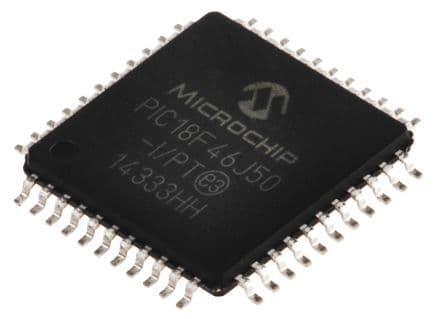

Product Images
