8-bit microcontroller featuring 64KB FLASH memory and operating up to 64MHz. This surface mount device offers 36 programmable I/Os, 14 A/D converter channels, and multiple communication interfaces including I2C, SPI, and UART. It operates from a 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. The TQFP package measures 10mm x 10mm with a 1.05mm height.
Frequency64MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F46K20-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
64KB
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
14
Number of Bits
8
Number of I/Os
36
Number of I2C Channels
1
Number of Programmable I/O
36
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
3936B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F46K20-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F46K20-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

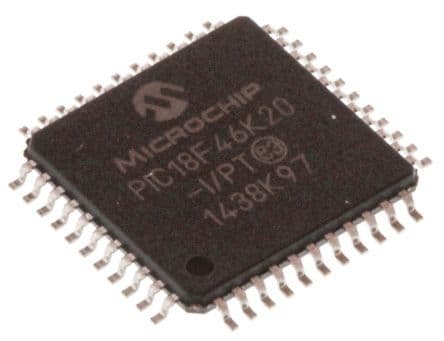

Product Images
