8-bit FLASH microcontroller featuring an 8-bit PIC core, operating at up to 48MHz. This TQFP-packaged device offers 128KB of FLASH memory, 3.8KB of RAM, and 33 I/O pins, including 22 programmable I/Os. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with USB, LIN, 8 timers/counters, and a watchdog timer. Designed for a supply voltage range of 2.15V to 3.6V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency48MHz
PackageTQFP
Current580uA
Quick Jump:
Technical Specifications
Microchip PIC18F47J53-I/PT technical specifications.
General
| Address Bus Width | 8b |
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, USART, USB, UART, LIN |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 128KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.15V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 13 |
| Number of Bits | 8 |
| Number of I/Os | 33 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 22 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 8 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 3.8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 580uA |
| Watchdog Timer | Yes |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F47J53-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F47J53-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

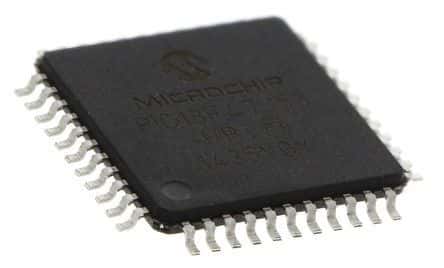

Product Images
