8-bit RISC microcontroller featuring 40MHz operation and 48KB FLASH memory. This surface mount device offers 3.25KB RAM, 53 programmable I/O pins, and 12 ADC channels. Integrated peripherals include I2C, SPI, CAN, UART, USART interfaces, 5 timers/counters, and a watchdog timer. Operating voltage ranges from 4.2V to 5.5V, with a maximum power dissipation of 1W and an operating temperature range of -40°C to 125°C. The TQFP-64 package measures 10.1mm x 10.1mm with a 1.05mm height.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6585-E/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
10.1mm
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of ADC Channels
12
Number of I2C Channels
1
Number of Programmable I/O
53
Number of SPI Channels
1
Number of Timers/Counters
5
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3.25KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6585-E/PT Datasheet
Download the complete datasheet for Microchip PIC18F6585-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

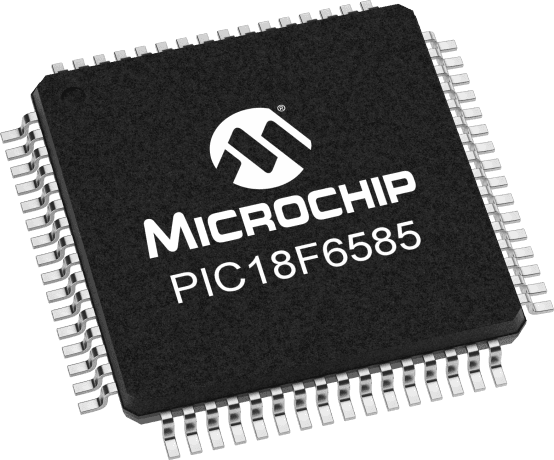

Product Images
