8-bit RISC Flash Microcontroller, operating at 40MHz, features 48KB of FLASH memory and 3.25KB of RAM. This surface mount device offers 53 programmable I/Os, supporting I2C, SPI, CAN, UART, and USART interfaces. Integrated peripherals include a watchdog timer, brown-out detect, POR, and 2 PWM channels. Operating within a 4.2V to 5.5V supply range, it functions from -40°C to 85°C.
Frequency40MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6585-I/L technical specifications.
General
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Density
48KB
Frequency
40MHz
Interface
I2C, SPI, CAN, UART, USART
Max Frequency
1MHz
Max Operating Temperature
85°C
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of PWM Channels
2
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
19
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Termination
SMD/SMT
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6585-I/L Datasheet
Download the complete datasheet for Microchip PIC18F6585-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

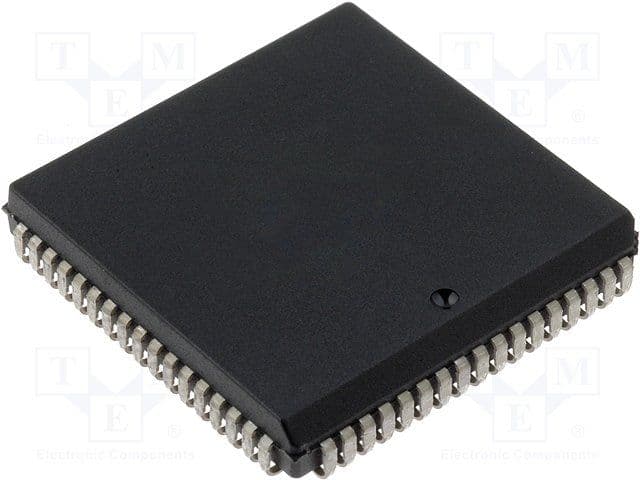

Product Images
