8-bit RISC microcontroller featuring 48KB FLASH memory and 3.25KB RAM. Operates at a maximum frequency of 40MHz with an 8-bit data bus width. Offers extensive connectivity with I2C, SPI, CAN, UART, USART, and USB interfaces. Includes 52 programmable I/Os, 12 A/D converter channels, and 5 PWM channels. Packaged in a 64-pin TQFP (Thin Quad Flat Pack) with a 0.5mm lead pitch, suitable for surface mounting. Operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6585-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
48KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10.1mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of Ethernet Channels
1
Number of I/Os
52
Number of I2C Channels
1
Number of Programmable I/O
52
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
External
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3.25KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
10.1mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6585-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F6585-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

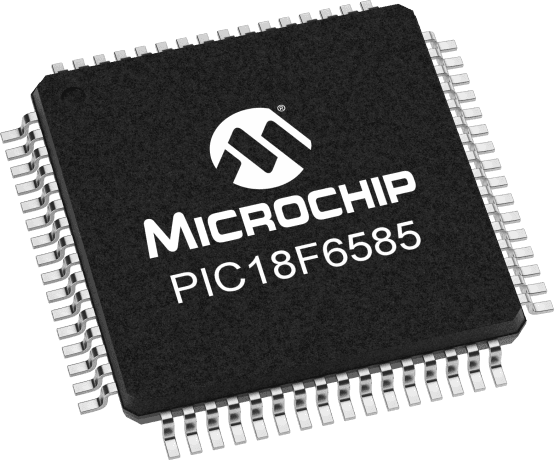

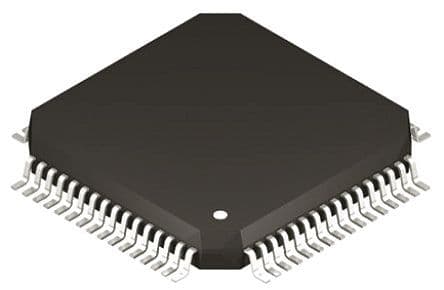

Product Images
