8-bit microcontroller featuring a 32KB FLASH program memory and 2KB RAM. Operates at a maximum frequency of 64MHz with an 8-bit data bus width. Offers 53 programmable I/O pins and supports I2C, SPI, UART, USART, and LIN interfaces. Includes 16 ADC channels, 2 I2C channels, 2 SPI channels, and 8 timers/counters. Packaged in a 64-pin TQFP with dimensions of 10mm x 10mm x 1.05mm, operating from 1.8V to 5.5V, and is lead-free and RoHS compliant.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F65K22-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of SPI Channels
2
Number of Timers/Counters
8
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F65K22-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F65K22-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

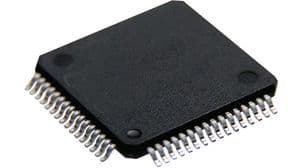

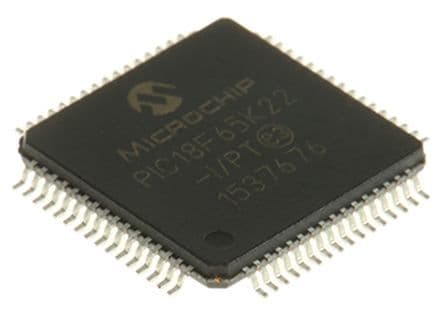

Product Images
