8-bit FLASH microcontroller featuring an 8b data bus width and a 40MHz maximum operating frequency. This surface mount device offers 96KB of FLASH memory, 3936B of RAM, and 54 programmable I/O pins. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART, USART, 12 ADC channels, and 14 PWM channels. Operating within a 4.2V to 5.5V supply voltage range, it supports a temperature range of -40°C to 85°C and is RoHS compliant.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F6628-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Density
96KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
96KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of ADC Channels
12
Number of Bits
8
Number of I/Os
54
Number of I2C Channels
2
Number of Programmable I/O
54
Number of PWM Channels
14
Number of SPI Channels
2
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
3936B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F6628-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F6628-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

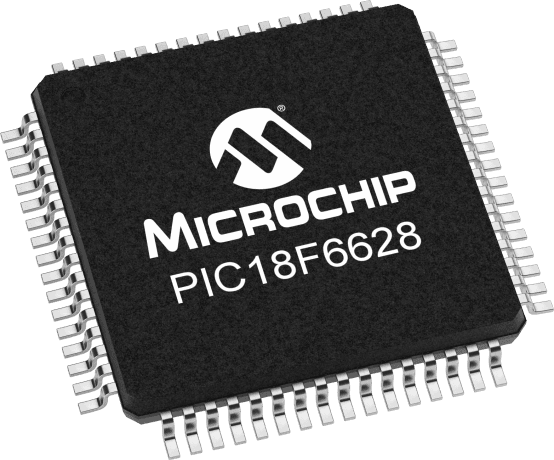

Product Images
