8-bit PIC microcontroller featuring 64MHz operation and 128KB FLASH memory. This TQFP-packaged MCU offers 53 programmable I/Os, 16 ADC channels, and 10 PWM channels. Integrated peripherals include I2C, SPI, UART, USART, LIN interfaces, along with a watchdog timer, brown-out detect, and power-on reset. Operating from 1.8V to 5.5V, it supports a temperature range of -40°C to 85°C.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F67K22-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of ADC Channels
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
11
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F67K22-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F67K22-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

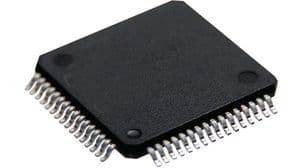

Product Images
