8-bit microcontroller featuring a PIC CPU core, operating at up to 64MHz. This CMOS device offers 128KB FLASH memory, 4KB RAM, and 53 programmable I/O pins. Integrated peripherals include 16 ADC channels, 10 PWM channels, 2 I2C, 2 SPI, and 2 UART interfaces, along with 11 timers/counters. Packaged in an 80-pin TQFP with a 10mm x 10mm footprint, it supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency64MHz
PackageTQFP
Current910uA
Quick Jump:
Technical Specifications
Microchip PIC18F67K22-I/PTRSL technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
1.05mm
Interface
I2C, SPI, USART, UART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
8
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
11
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Supply Current
910uA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F67K22-I/PTRSL Datasheet
Download the complete datasheet for Microchip PIC18F67K22-I/PTRSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

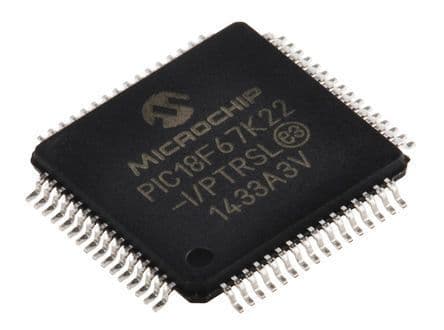

Product Images
