8-bit microcontroller featuring 96KB FLASH memory and 3808B RAM, operating at a maximum frequency of 41.667MHz. This surface-mount device offers 55 programmable I/O pins and supports I2C, SPI, Ethernet, and UART interfaces. Includes 15 ADC channels, 14 PWM channels, and 5 timers/counters, with peripherals like Brown-out Detect/Reset and WDT. Packaged in a 80-pin TQFP (12x12mm) with a height of 1.05mm, this lead-free component operates from 2V to 3.9V.
Frequency41.667MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F86J65-I/PT technical specifications.
General
| Access Time | 42us |
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 96KB |
| Frequency | 41.667MHz |
| Height | 1.05mm |
| Interface | I2C, SPI, Ethernet, UART, USART |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Frequency | 41.667MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 3.9V |
| Memory Size | 96KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 15 |
| Number of Bits | 8 |
| Number of Ethernet Channels | 1 |
| Number of I/Os | 55 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 55 |
| Number of PWM Channels | 14 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 119 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 3808B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F86J65-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F86J65-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

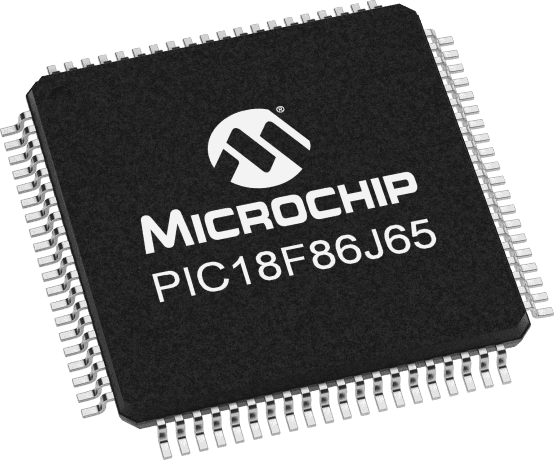

Product Images
