8-bit microcontroller (MCU) featuring 64KB FLASH memory and 4KB RAM. Operates at a maximum frequency of 64MHz with an internal oscillator. Offers 69 programmable I/Os and supports I2C, SPI, and UART/USART interfaces. Includes 24 ADC channels, 11 timers/counters, and peripherals such as PWM, WDT, and LCD. Packaged in an 80-TQFP with a temperature range of -40°C to 85°C.
Frequency64MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18F86K90-I/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Height | 1.05mm |
| Interface | I2C, SPI, UART, USART |
| Length | 12mm |
| Max Frequency | 64MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Memory Size | 64KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Number of ADC Channels | 24 |
| Number of I/Os | 69 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 69 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 11 |
| Oscillator Type | Internal |
| Package Quantity | 119 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LCD |
| Radiation Hardening | No |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18K |
| Watchdog Timer | Yes |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F86K90-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F86K90-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

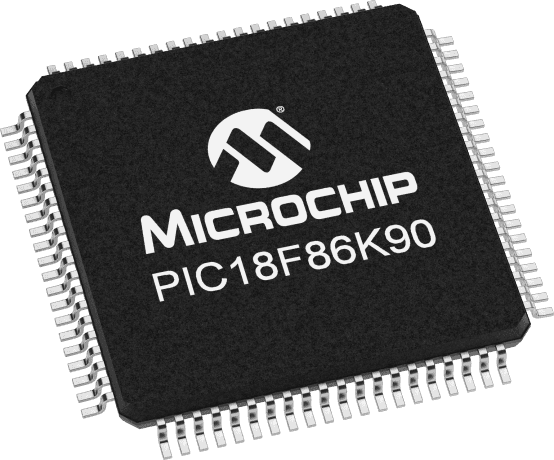

Product Images
