8-bit microcontroller featuring a PIC CPU core, operating at up to 64MHz. This CMOS device offers 128KB of FLASH memory and 4KB of RAM, with 69 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 10 PWM channels and 11 timers/counters. Housed in an 80-pin TQFP package, it supports a supply voltage range of 1.8V to 5.5V and operates from -40°C to 85°C.
Frequency64MHz
PackageTQFP
Current910uA
Quick Jump:
Technical Specifications
Microchip PIC18F87K22-I/PTRSL technical specifications.
General
Address Bus Width
8b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.041inch
Interface
I2C, SPI, USART, UART, EBI/EMI, LIN
Lead Free
Lead Free
Length
0.472inch
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
8
Number of I/Os
69
Number of I2C Channels
2
Number of Programmable I/O
69
Number of PWM Channels
10
Number of SPI Channels
2
Number of Timers/Counters
11
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Supply Current
910uA
Watchdog Timer
Yes
Width
0.472inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F87K22-I/PTRSL Datasheet
Download the complete datasheet for Microchip PIC18F87K22-I/PTRSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

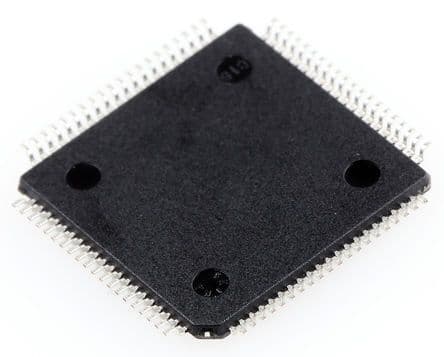

Product Images
