Technical Specifications
Microchip PIC18F87K90T-I/PTRSL technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, UART, USART
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
128KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of I/Os
69
Number of Programmable I/O
69
Number of Timers/Counters
10
Oscillator Type
Internal
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LCD
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® XLP™ 18K
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F87K90T-I/PTRSL Datasheet
Download the complete datasheet for Microchip PIC18F87K90T-I/PTRSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

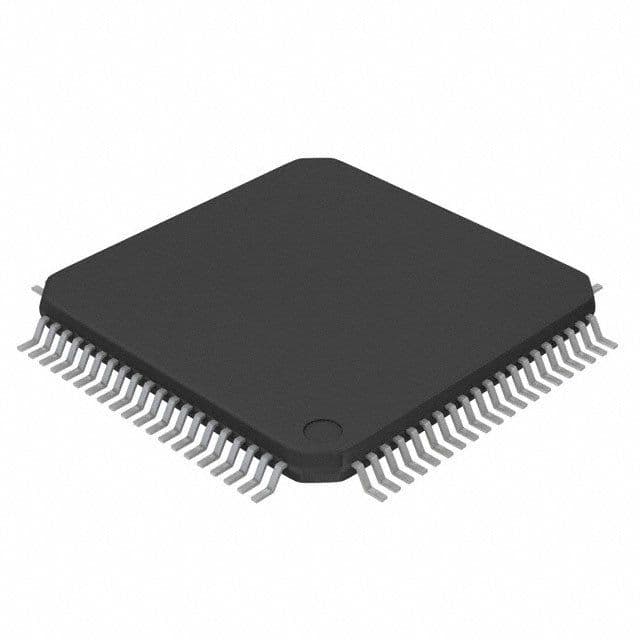

Product Images
