The PIC18F95J94T-I/PT is a high-performance microcontroller from Microchip, operating at a frequency of 64MHz. It features 32KB of FLASH memory and 4KB of RAM, making it suitable for a wide range of applications. The device is packaged in a TQFP-100 format, ideal for surface mount applications. It operates over a temperature range of -40°C to 85°C and meets the requirements of the RoHS regulations. The PIC18F95J94T-I/PT supports various interfaces, including I2C, SPI, USB, IrDA, UART, and USART, and includes a range of peripherals such as brown-out detect/reset, power-on reset, PWM, watchdog timer, and high-low voltage detect. This microcontroller is part of the PIC XLP 18J series, known for its high efficiency and low power consumption.
Frequency64MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F95J94T-I/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Frequency | 64MHz |
| Interface | I2C, SPI, USB, IrDA, UART, USART |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 86 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 1200 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD, LCD |
| RAM Size | 4KB |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18J |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18F95J94T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F95J94T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

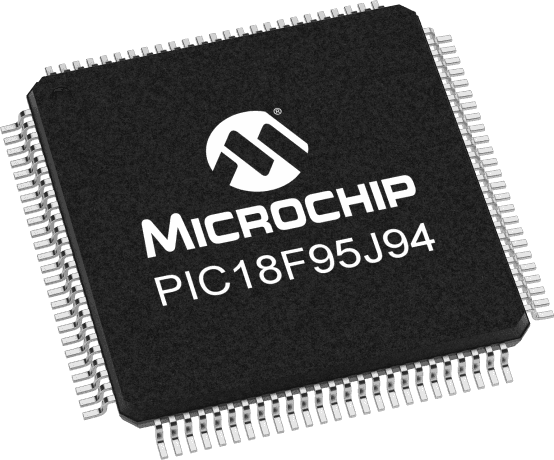

Product Images
