8-bit FLASH microcontroller featuring an 8b data bus and operating at up to 48MHz. This QFN-packaged MCU offers 14 I/Os, including 18 programmable I/Os, and supports I2C, SPI, USB, UART, and USART interfaces. It includes 11 ADC channels, 4 timers/counters, and a watchdog timer, with a memory configuration of 8KB FLASH and 512B RAM. Operating voltage ranges from 2.7V to 3.6V, with a maximum power dissipation of 800mW and an operating temperature range of -40°C to 85°C.
Frequency48MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18LF13K50-I/MQ technical specifications.
General
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, USB, UART, USART |
| Length | 5mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 3.6V |
| Memory Size | 8KB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Number of ADC Channels | 11 |
| Number of I/Os | 14 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 18 |
| Number of PWM Channels | 1 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 512B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 18K |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18LF13K50-I/MQ Datasheet
Download the complete datasheet for Microchip PIC18LF13K50-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

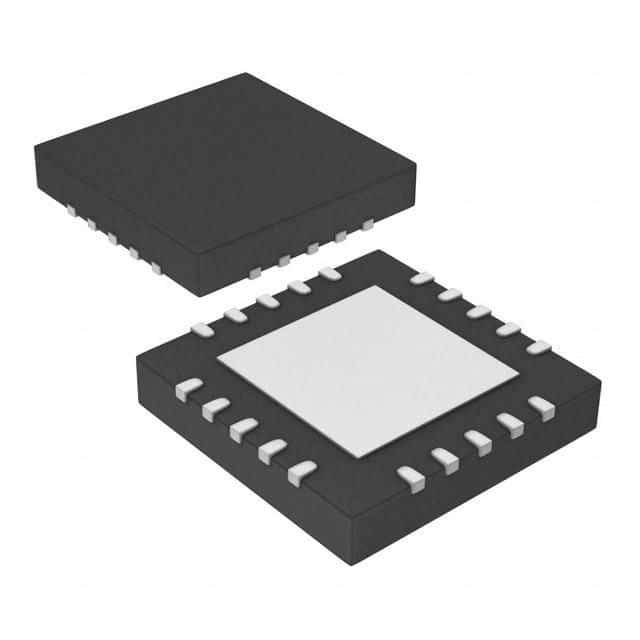

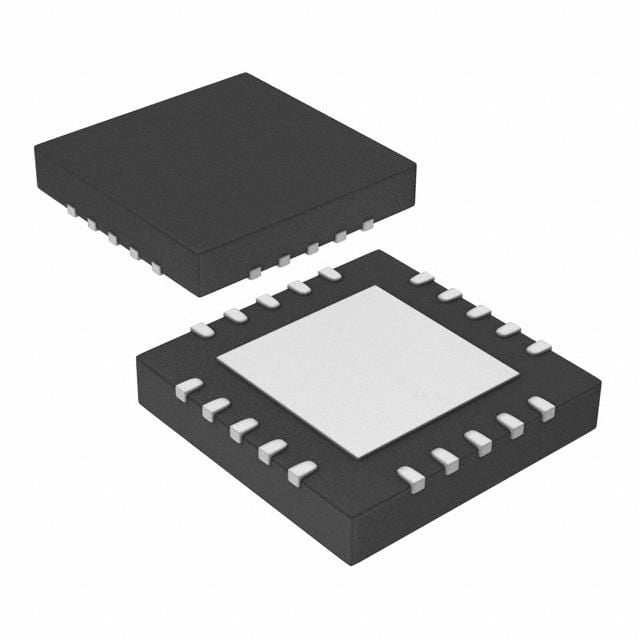

Product Images
