8-bit FLASH microcontroller featuring an 8b data bus and a maximum operating frequency of 40MHz. This surface mount device offers 8KB of FLASH memory and 512B of RAM, with 25 programmable I/O pins. Integrated peripherals include I2C, SPI, and UART/USART interfaces, along with four timers/counters and PWM capabilities. Operating within a voltage range of 2V to 5.5V, it supports temperatures from -40°C to 85°C and includes a watchdog timer.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF2321-I/SS technical specifications.
General
| Access Time | 40us |
| Package/Case | SSOP |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Frequency | 40MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Programmable I/O | 25 |
| Number of Timers/Counters | 4 |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | PWM, I2C |
| Radiation Hardening | No |
| RAM Size | 512B |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18LF2321-I/SS Datasheet
Download the complete datasheet for Microchip PIC18LF2321-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

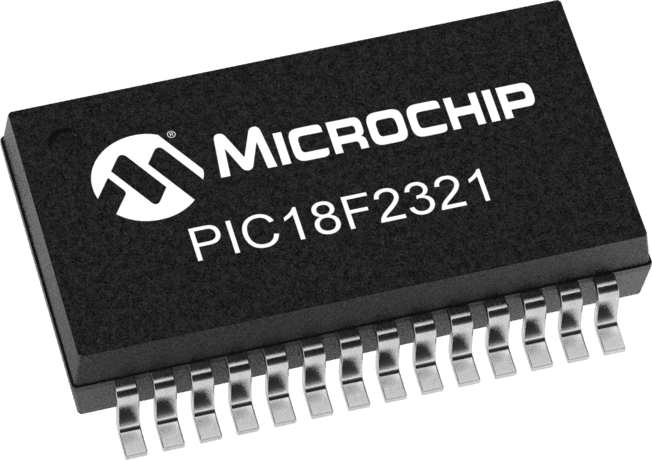

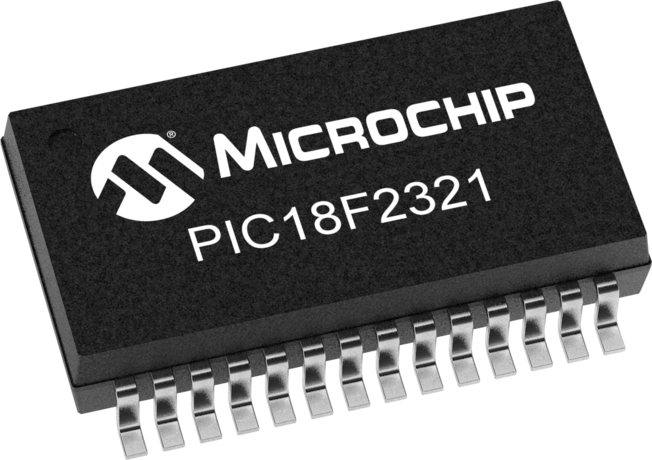

Product Images
