8-bit FLASH microcontroller featuring an 8b data bus and 40MHz core frequency. Offers 16KB FLASH memory, 768B RAM, and 25 programmable I/O pins. Supports I2C, SPI, CAN, UART, and USART interfaces. Operates from 2V to 5.5V with a maximum operating temperature of 85°C. Packaged in a lead-free, RoHS compliant SOIC-28 surface mount package.
Frequency40MHz
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF2480-I/SO technical specifications.
General
Access Time
40us
Package/Case
SOIC W
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Programmable I/O
25
Number of Timers/Counters
4
Package Quantity
27
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
768B
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF2480-I/SO Datasheet
Download the complete datasheet for Microchip PIC18LF2480-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

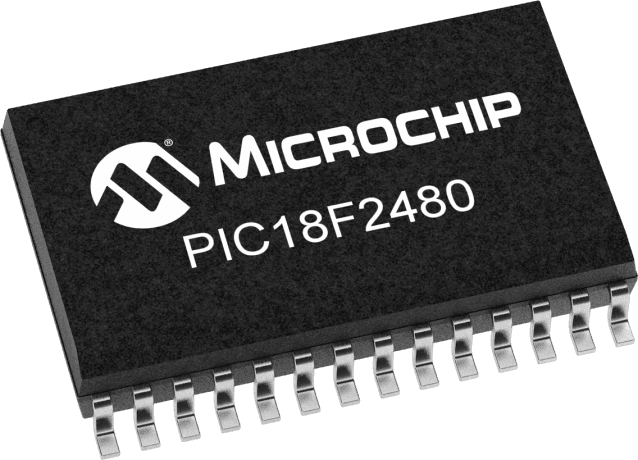

Product Images
