8-bit RISC microcontroller featuring 32KB FLASH memory and 1.5KB RAM, operating at a maximum frequency of 40MHz. This surface mount device supports I2C, SPI, and UART interfaces, with 25 programmable I/O pins and 10 ADC channels. It includes multiple peripherals such as PWM, WDT, and Brown-out Detect, operating within a voltage range of 2V to 5.5V and an extended temperature range of -40°C to 85°C.
Frequency40MHz
PackageQFN
Current580uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF2520-I/ML technical specifications.
General
| Access Time | 40us |
| Address Bus Width | 8b |
| Package/Case | QFN |
| Core Architecture | PIC |
| Data Bus Width | 8b |
| Density | 32KB |
| Frequency | 40MHz |
| Height | 0.95mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Frequency | 40MHz |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of ADC Channels | 10 |
| Number of Bits | 8 |
| Number of I/Os | 25 |
| Number of I2C Channels | 1 |
| Number of Inputs | 25 |
| Number of Outputs | 23 |
| Number of Programmable I/O | 25 |
| Number of PWM Channels | 2 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C |
| Radiation Hardening | No |
| RAM Size | 1.5KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 580uA |
| Watchdog Timer | Yes |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC18LF2520-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF2520-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

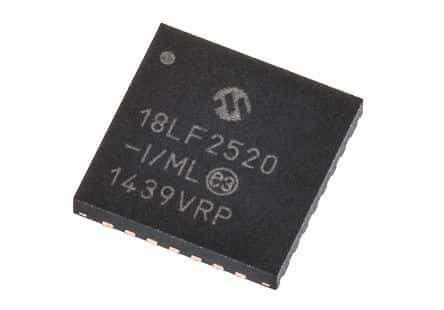

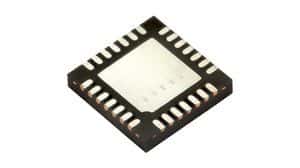

Product Images
