8-bit RISC microcontroller featuring 64MHz operation and 32KB FLASH memory. This integrated circuit offers 1.5KB RAM, 24 I/O pins, and supports I2C, SPI, and UART interfaces. Includes 19 ADC channels, 5 PWM channels, and 7 timers/counters. Operates from 1.8V to 3.6V supply voltage within a -40°C to 85°C temperature range, housed in a 6x6mm QFN package.
Frequency64MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC18LF25K22-I/ML technical specifications.
General
Address Bus Width
8b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Length
6mm
Max Frequency
64MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH
Min Supply Voltage
1.8V
Number of A/D Converters
2
Number of ADC Channels
19
Number of Bits
8
Number of I/Os
24
Number of I2C Channels
2
Number of Programmable I/O
25
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
7
Number of UART Channels
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF25K22-I/ML Datasheet
Download the complete datasheet for Microchip PIC18LF25K22-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

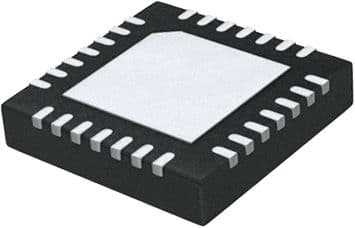

Product Images
