8-bit RISC microcontroller featuring 40MHz operation and 32KB FLASH memory. This integrated circuit offers 1.5KB RAM, 34 programmable I/O pins, and multiple communication interfaces including I2C, SPI, and USART. Equipped with 8 ADC channels and 2 PWM channels, it supports external oscillators and includes peripherals like Brown-out Detect, POR, WDT, LVD, and I2C. Operating within a 2V to 5.5V supply range and a -40°C to 85°C temperature range, this RoHS compliant component is housed in a 40-pin PDIP package.
Frequency40MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC18LF452-I/P technical specifications.
General
Access Time
40us
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Height
4.06mm
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Length
52.45mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH
Min Supply Voltage
2V
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
34
Number of I2C Channels
1
Number of Programmable I/O
34
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
4
Oscillator Type
External
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
1.5KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF452-I/P Datasheet
Download the complete datasheet for Microchip PIC18LF452-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

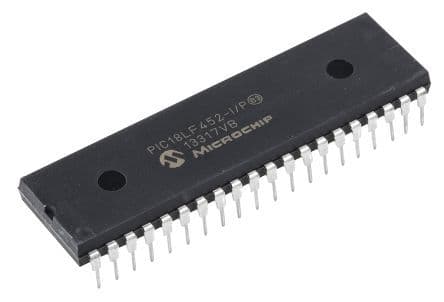

Product Images
