Microchip
PIC18LF45K22-I/MV
8-BIT, FLASH, 64 MHz, RISC MICROCONTROLLER, PQCC40, 5 X 5 MM, 0.50 MM HEIGHT, LEAD FREE, PLASTIC, UQFN-40
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18LF45K22-I/MV technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
64MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
7
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF45K22-I/MV Datasheet
Download the complete datasheet for Microchip PIC18LF45K22-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

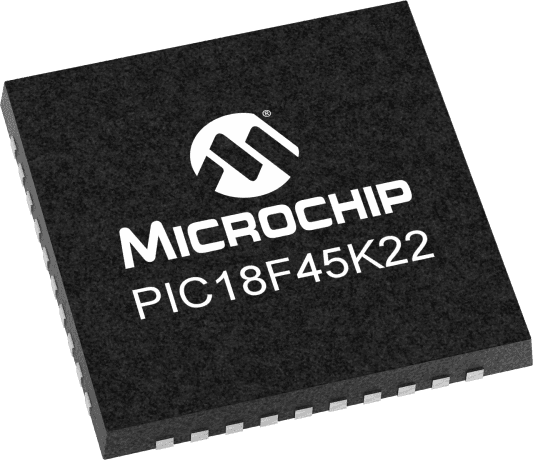

Product Images
