8-bit RISC microcontroller featuring 64KB FLASH program memory and 4KB RAM. Operates at up to 16MHz with support for I2C, SPI, USART, and UART interfaces. Offers 35 I/O pins, 7 timers/counters, and a watchdog timer. Packaged in a TQFP with a lead-free, RoHS compliant design, suitable for operation between -40°C and 85°C.
Frequency16MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC18LF46K22-I/MV technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
16MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of I/Os
35
Number of Programmable I/O
36
Number of Timers/Counters
7
Packaging
Rail/Tube
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF46K22-I/MV Datasheet
Download the complete datasheet for Microchip PIC18LF46K22-I/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

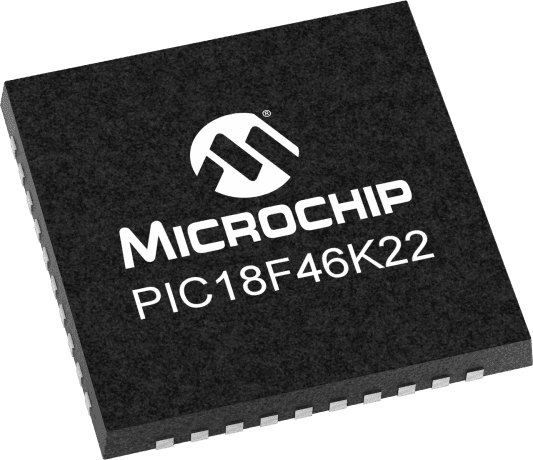

Product Images
