8-bit RISC microcontroller featuring a 40MHz core frequency and 32KB FLASH memory. This surface mount device offers 52 programmable I/O pins, 2KB RAM, and multiple communication interfaces including I2C, SPI, and USART. Operating from 4.2V to 5.8V, it includes integrated peripherals such as Brown-out Detect, POR, PWM, and a Watchdog Timer. Packaged in a 64-pin TQFP, this lead-free component is suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF6520T-I/PT technical specifications.
General
Access Time
40us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
40MHz
Interface
I2C, SPI, USART, UART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.8V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Programmable I/O
52
Number of Timers/Counters
5
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF6520T-I/PT Datasheet
Download the complete datasheet for Microchip PIC18LF6520T-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

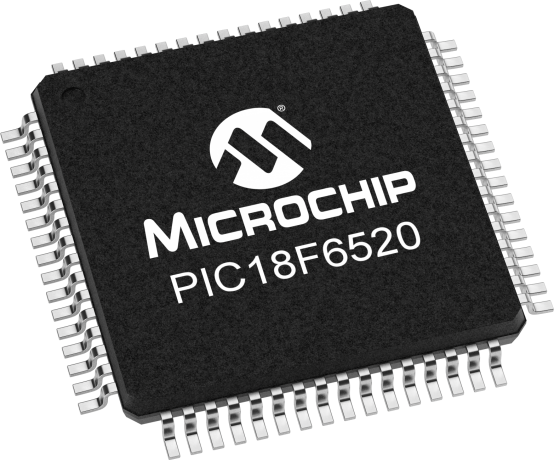

Product Images
