8-bit RISC microcontroller featuring 40 MHz operation and 48KB FLASH memory. This surface-mount device offers 52 I/O pins, 8 timers/counters, and supports I2C, SPI, CAN, and UART interfaces. Operating from 2V to 5.5V, it includes a watchdog timer and peripherals like POR and PWM, with a maximum operating temperature of 85°C.
Frequency40MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18LF6585T-I/L technical specifications.
General
Package/Case
PLCC
Core Architecture
PIC
Data Bus Width
8b
Interface
I2C, SPI, CAN, UART, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
52
Number of Programmable I/O
53
Number of Timers/Counters
8
Oscillator Type
External
Package Quantity
300
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
3328B
RoHS Compliant
Yes
Series
PIC® 18F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18LF6585T-I/L Datasheet
Download the complete datasheet for Microchip PIC18LF6585T-I/L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

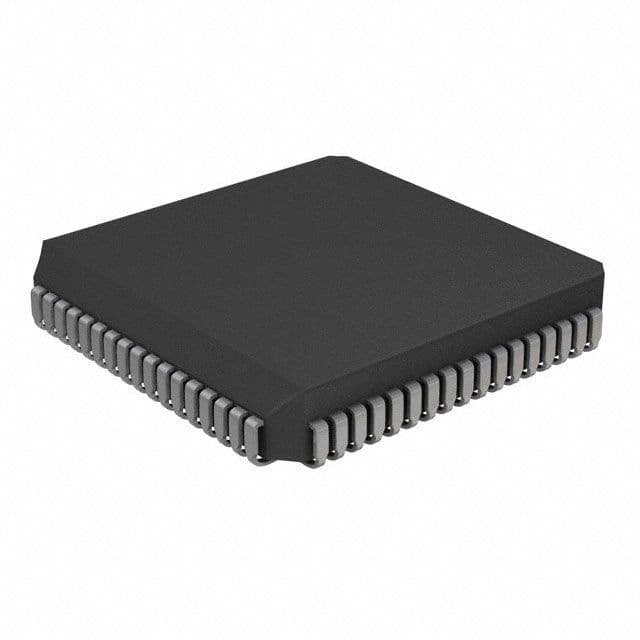

Product Images
