16-bit microcontroller featuring a PIC core architecture, operating at up to 60MHz. This FLASH memory device offers 280KB of program memory and 28KB of RAM. It supports multiple interfaces including I2C, SPI, USB, CAN, and UART, with 122 programmable I/O pins. The LQFP package measures 20mm x 20mm with a 1.4mm height, suitable for surface mounting. Integrated peripherals include a watchdog timer, DMA, and 32 ADC channels.
Frequency60MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP256GU814-I/PL technical specifications.
General
Package/Case
LQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Height
1.4mm
Interface
I2C, SPI, USB, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
20mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
280KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
32
Number of Bits
16
Number of Ethernet Channels
1
Number of I/Os
122
Number of I2C Channels
2
Number of Programmable I/O
122
Number of PWM Channels
16
Number of SPI Channels
4
Number of Timers/Counters
9
Number of UART Channels
4
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
60
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
RAM Size
28KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24
Watchdog Timer
Yes
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP256GU814-I/PL Datasheet
Download the complete datasheet for Microchip PIC24EP256GU814-I/PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

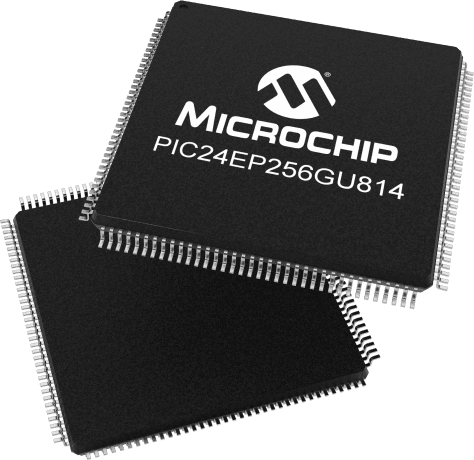

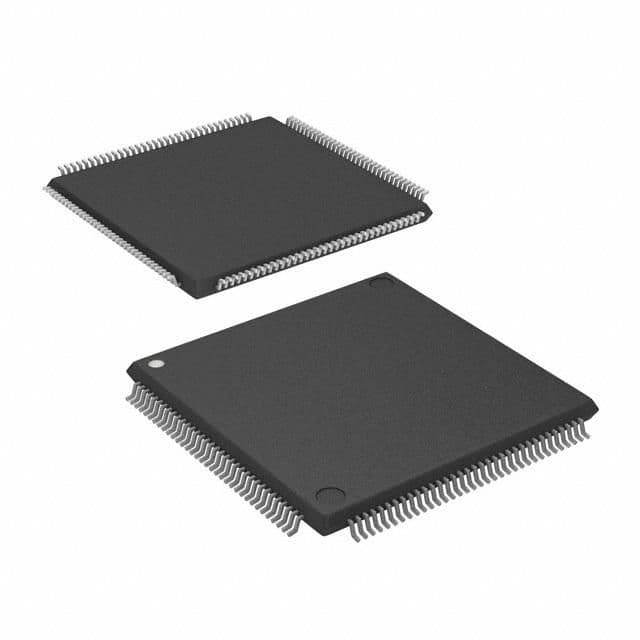

Product Images
