Frequency60MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP256GU814T-I/PL technical specifications.
General
Package/Case
LQFP
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, UART, 4-WIRE, USB, IrDA, USART
Max Frequency
60MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
32
Number of I/Os
122
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
700
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
28KB
RoHS Compliant
Yes
Series
PIC® 24EP
Weight
0.045518oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP256GU814T-I/PL Datasheet
Download the complete datasheet for Microchip PIC24EP256GU814T-I/PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

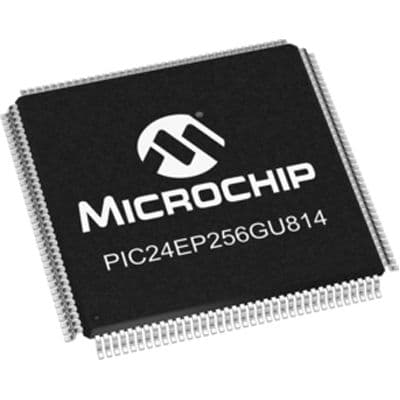

Product Images
