16-bit microcontroller featuring a 70MHz core frequency and 256KB FLASH memory. This PIC microcontroller offers 32KB RAM and operates with a 3V to 3.6V supply voltage. Integrated peripherals include I2C, SPI, UART, IrDA, and USART interfaces, along with 6 ADC channels and 6 PWM channels. The device is housed in a 28-pin PDIP package, is RoHS compliant, and operates within a -40°C to 85°C temperature range.
Frequency70MHz
PackageDIP
Quick Jump:
Technical Specifications
Microchip PIC24EP256MC202-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Height
0.15inch
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
11MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Number of ADC Channels
6
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24EP
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP256MC202-I/SP Datasheet
Download the complete datasheet for Microchip PIC24EP256MC202-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

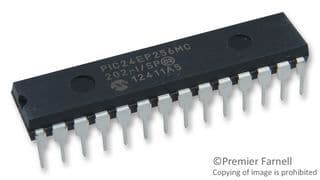

Product Images
