16-bit microcontroller featuring a 70 MHz core speed and 32KB of FLASH memory. This PIC microcontroller offers 21 programmable I/O pins and 4KB of RAM. Integrated peripherals include I2C, SPI, UART, USART, IrDA, PWM, DMA, and a watchdog timer. Operates from 2.95V to 3.6V with an internal oscillator, housed in a 28-pin SSOP package. Suitable for applications operating between -40°C and 85°C.
Frequency70MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC24EP32MC202-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
70MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP32MC202-I/SS Datasheet
Download the complete datasheet for Microchip PIC24EP32MC202-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

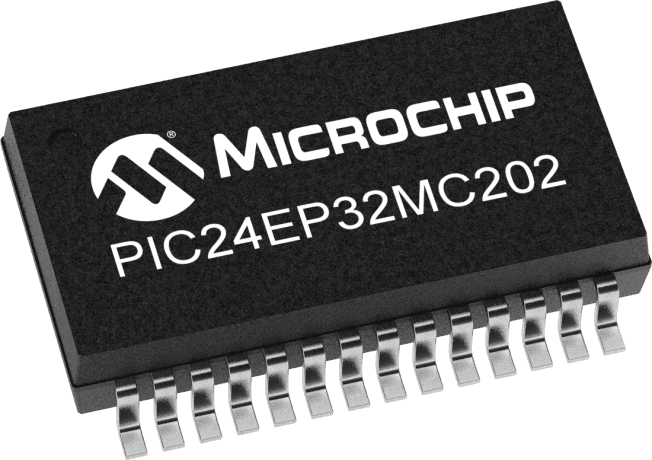

Product Images
