16-bit microcontroller featuring a PIC core architecture, operating at up to 70MHz with 512KB FLASH memory and 48KB RAM. This surface-mount device in a VQFN package offers 21 programmable I/Os, multiple communication interfaces including I2C (2 channels), SPI (2 channels), UART (2 channels), USB (1 channel), IrDA, and LIN. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA. Operating voltage ranges from 3V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency70MHz
PackageVQFN
Current9mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP512GP202-I/MM technical specifications.
General
Address Bus Width
16b
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
6
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24EP
Supply Current
9mA
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GP202-I/MM Datasheet
Download the complete datasheet for Microchip PIC24EP512GP202-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

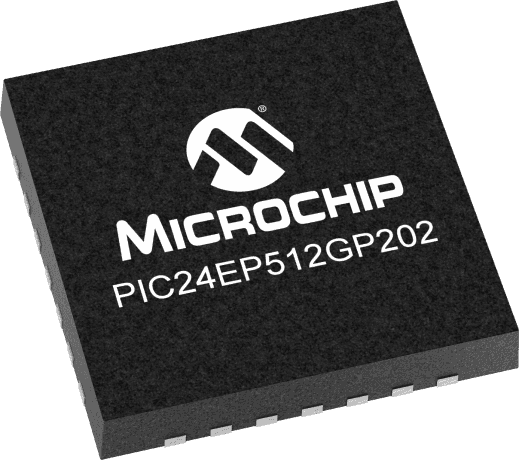

Product Images
