Technical Specifications
Microchip PIC24EP512GP204-E/MV technical specifications.
General
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, CAN, UART, 4-WIRE, IrDA, USART
Max Frequency
60MHz
Max Operating Temperature
125°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
35
Number of Timers/Counters
12
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GP204-E/MV Datasheet
Download the complete datasheet for Microchip PIC24EP512GP204-E/MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

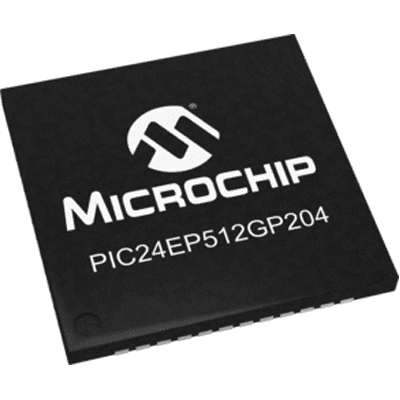

Product Images
