16-bit microcontroller featuring a PIC core architecture, operating at up to 60MHz. This integrated circuit offers 512KB of FLASH memory and 52KB of RAM, with 53 programmable I/O pins. Connectivity is supported via I2C, SPI, IrDA, UART, USART, and CAN interfaces. Designed for automotive applications, it operates within a 2.95V to 3.6V supply voltage range and boasts a wide operating temperature range of -40°C to 125°C. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, WDT, and DMA, with an internal oscillator and 9 timers/counters.
Frequency60MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC24EP512GP806-E/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
60MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Supply Voltage
2.95V
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GP806-E/MR Datasheet
Download the complete datasheet for Microchip PIC24EP512GP806-E/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

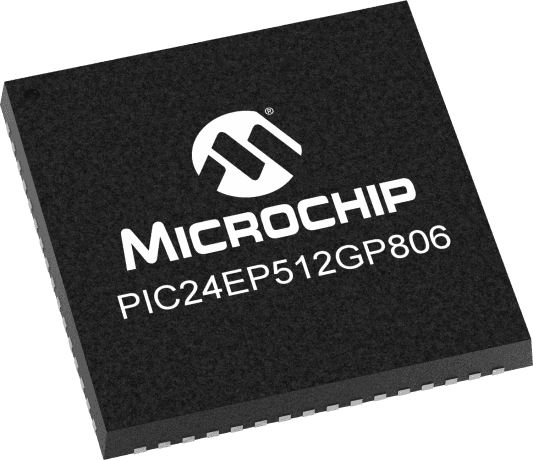

Product Images
