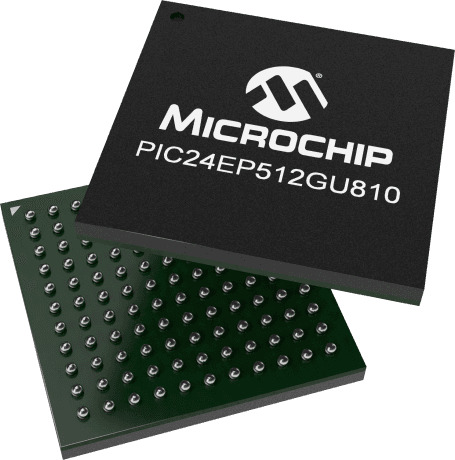

16-bit microcontroller featuring a 60MHz core, 512KB FLASH memory, and 52KB RAM. This surface mount device supports I2C, SPI, USB, IrDA, UART, USART, and CAN interfaces, with 83 I/Os. Includes 32 analog input channels across one A/D converter, 16 PWM channels, and 9 timers/counters. Operates from 2.95V to 3.6V, with a maximum operating temperature of 125°C. Features include Brown-out Detect/Reset, POR, PWM, WDT, and DMA peripherals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip PIC24EP512GU810-E/BG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TFBGA |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 60MHz |
| Height | 0.047inch |
| Interface | I2C, SPI, USB, IrDA, UART, USART, CAN |
| Length | 0.393inch |
| Max Frequency | 60MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.95V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 32 |
| Number of Bits | 16 |
| Number of I/Os | 83 |
| Number of I2C Channels | 2 |
| Number of PWM Channels | 16 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 9 |
| Number of UART Channels | 4 |
| Number of USB Channels | 1 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 184 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 52KB |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100, PIC® 24EP |
| Width | 0.394inch |
| RoHS | Compliant |
Download the complete datasheet for Microchip PIC24EP512GU810-E/BG to view detailed technical specifications.
