Microchip
PIC24EP512GU810-E/PT
16-BIT, FLASH, 60 MHz, MICROCONTROLLER, PQFP100, 12 X 12 MM, 1 MM HEIGHT, LEAD FREE, PLASTIC, TQFP-100
Frequency60MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP512GU810-E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
60MHz
Interface
I2C, SPI, USB, UART, IrDA, USART, CAN
Max Frequency
60MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of I/Os
83
Number of Programmable I/O
83
Number of Timers/Counters
9
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
52KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP512GU810-E/PT Datasheet
Download the complete datasheet for Microchip PIC24EP512GU810-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

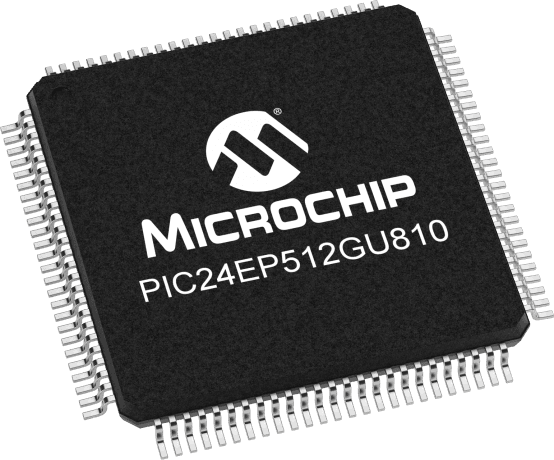

Product Images
