PIC24EP512GU814T-I/PL
PIC24EP512GU814T-I/PL 16b 60MHz 512KB FLASH MCU, LQFP-144, -40°C to 85°C
The PIC24EP512GU814T-I/PL is a 16-bit microcontroller with a maximum frequency of 60MHz and 512KB of FLASH memory. It operates within a temperature range of -40°C to 85°C and is packaged in a LQFP-144. The device features a 16-bit data bus and supports various interfaces, including I2C, SPI, UART, 4-WIRE, USB, IrDA, and USART. It also includes peripherals such as brown-out detect/reset, power-on reset, PWM, watchdog timer, and DMA.
Frequency60MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24EP512GU814T-I/PL technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Interface | I2C, SPI, UART, 4-WIRE, USB, IrDA, USART |
| Max Frequency | 60MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of ADC Channels | 32 |
| Number of I/Os | 122 |
| Number of Timers/Counters | 9 |
| Operating Supply Voltage | 3.6V |
| Oscillator Type | Internal |
| Package Quantity | 700 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| RAM Size | 52KB |
| RoHS Compliant | Yes |
| Series | PIC® 24EP |
| Weight | 0.045518oz |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24EP512GU814T-I/PL Datasheet
Download the complete datasheet for Microchip PIC24EP512GU814T-I/PL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

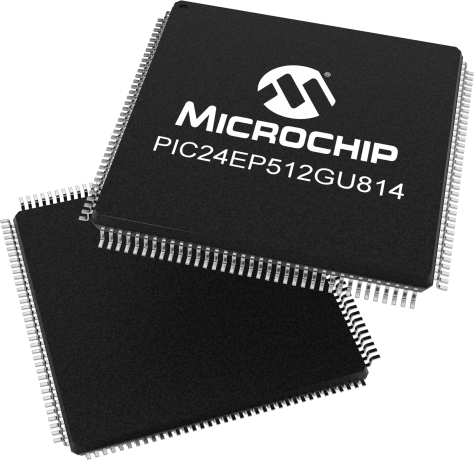

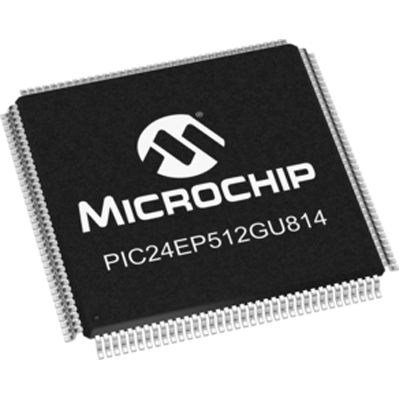

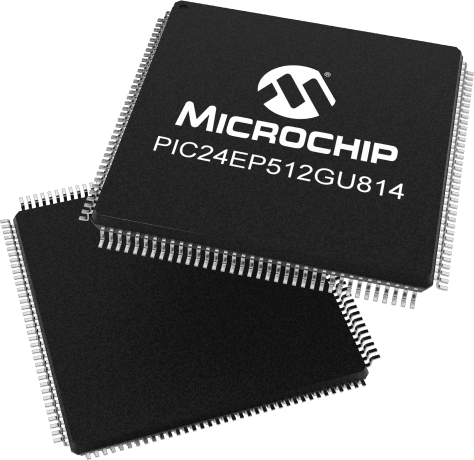

Product Images
