Technical Specifications
Microchip PIC24EP512MC204-H/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Interface
I2C, SPI, UART, IrDA, USART
Max Operating Temperature
150°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
35
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24EP
Compliance
RoHS
Not Compliant
Datasheet
Microchip PIC24EP512MC204-H/PT Datasheet
Download the complete datasheet for Microchip PIC24EP512MC204-H/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

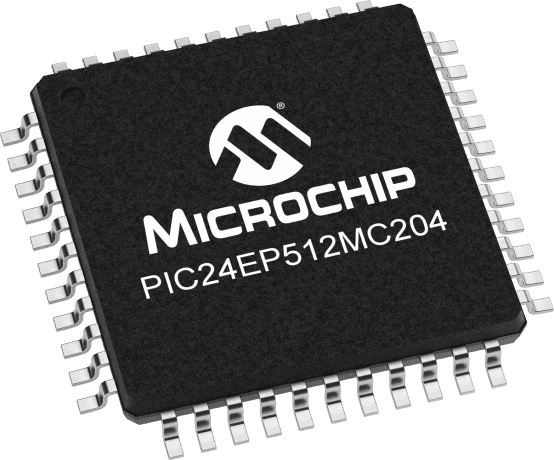

Product Images
