16-bit microcontroller featuring a PIC core architecture operating at 70MHz. This FLASH memory microcontroller offers 64KB of memory and 8KB of RAM. Integrated peripherals include I2C, SPI, IrDA, UART, USART interfaces, 5 timers/counters, and a watchdog timer. It operates from a 2.95V to 3.6V supply voltage and is available in a VQFN package, suitable for operation between -40°C and 85°C.
Frequency70MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC24EP64MC206-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
70MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32kHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of Programmable I/O
53
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 24EP
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24EP64MC206-I/MR Datasheet
Download the complete datasheet for Microchip PIC24EP64MC206-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

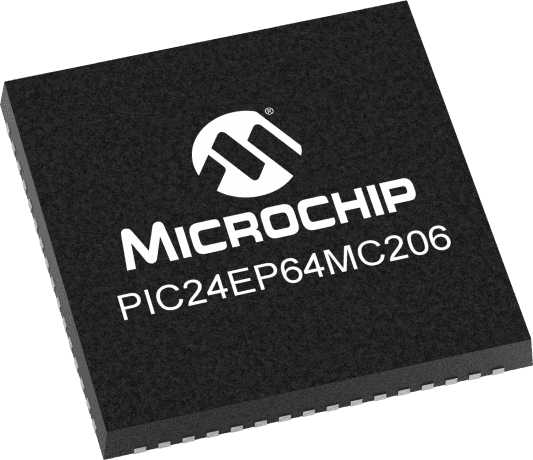

Product Images
