16-bit Flash Microcontroller, operating at up to 32MHz. Features 4KB Flash memory, 512B RAM, and 12 programmable I/O pins. Supports I2C, SPI, and UART interfaces, with 7 ADC channels and 3 timers. Packaged in a 14-pin PDIP, this lead-free component is designed for through-hole mounting and operates within a 1.8V to 3.6V supply range.
Frequency32MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24F04KA200-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Density
4KB
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
19.69mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
7
Number of Bits
16
Number of I/Os
12
Number of I2C Channels
1
Number of Programmable I/O
12
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
30
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Termination
Through Hole
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F04KA200-I/P Datasheet
Download the complete datasheet for Microchip PIC24F04KA200-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

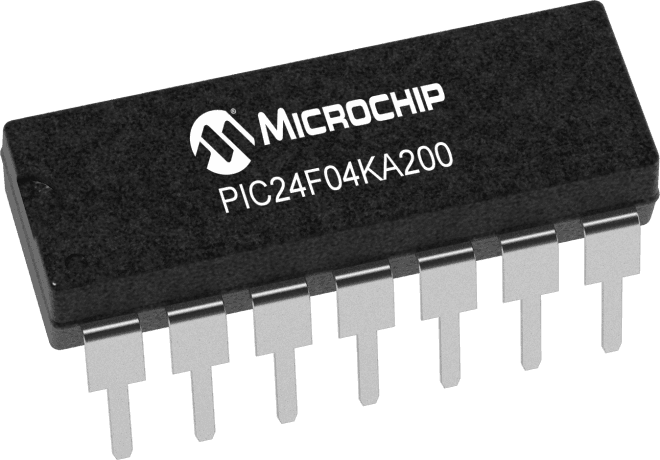

Product Images
