16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This CMOS integrated circuit offers 8KB of FLASH memory and 1.5KB of RAM, with 18 programmable I/O pins. Integrated peripherals include I2C, SPI, IrDA, and UART/USART interfaces, along with a watchdog timer and 9 ADC channels. Designed for surface mounting in a VQFN package, it operates from 1.8V to 3.6V and supports a temperature range of -40°C to 125°C.
Frequency32MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F08KA101-E/MQ technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.037inch
Interface
I2C, SPI, IrDA, UART, USART
Length
0.196inch
Max Frequency
32MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I2C Channels
1
Number of Programmable I/O
18
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KA101-E/MQ Datasheet
Download the complete datasheet for Microchip PIC24F08KA101-E/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

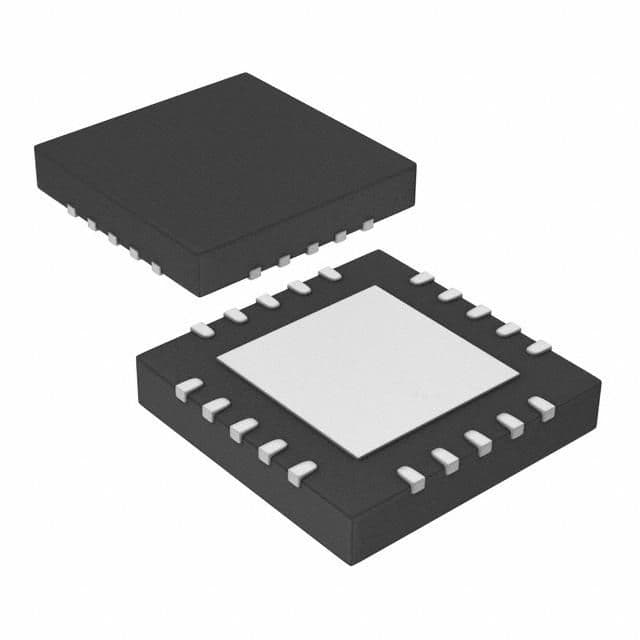

Product Images
