16-bit FLASH microcontroller featuring a 32MHz core frequency. This PIC microcontroller offers 8KB of FLASH memory and 1KB of RAM, with 18 programmable I/O pins. Integrated peripherals include 2x I2C, 2x SPI, 2x UART, PWM, WDT, and HLVD. Operating from 1.8V to 3.6V, this lead-free QFN-20 packaged component supports an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageQFN
Current2.7mA
Quick Jump:
Technical Specifications
Microchip PIC24F08KL301-I/MQ technical specifications.
General
Address Bus Width
16b
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of I/Os
18
Number of I2C Channels
2
Number of Programmable I/O
18
Number of SPI Channels
2
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Supply Current
2.7mA
Watchdog Timer
Yes
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KL301-I/MQ Datasheet
Download the complete datasheet for Microchip PIC24F08KL301-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

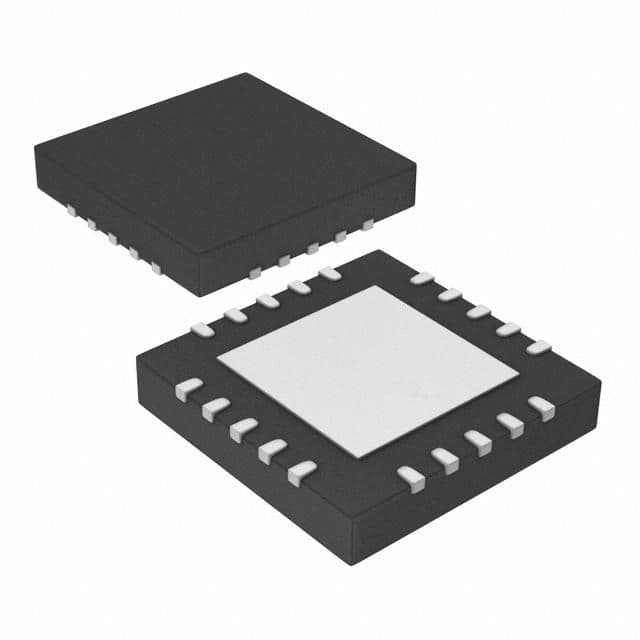

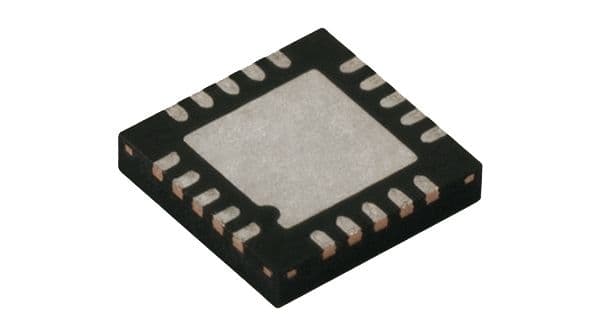

Product Images
