16-bit Flash microcontroller featuring a 32MHz core, 8KB Flash memory, and 1KB RAM. This MCU offers 24 programmable I/O pins and supports I2C, SPI, IrDA, UART, and USART interfaces. Operating from 1.8V to 3.6V, it includes 4 timers/counters, a watchdog timer, and peripherals like Brown-out Detect/Reset, POR, PWM, and HLVD. Packaged in a 28-pin QFN, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency32MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC24F08KL402-I/MQ technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of Programmable I/O
24
Number of Timers/Counters
4
Operating Supply Voltage
3V
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KL402-I/MQ Datasheet
Download the complete datasheet for Microchip PIC24F08KL402-I/MQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

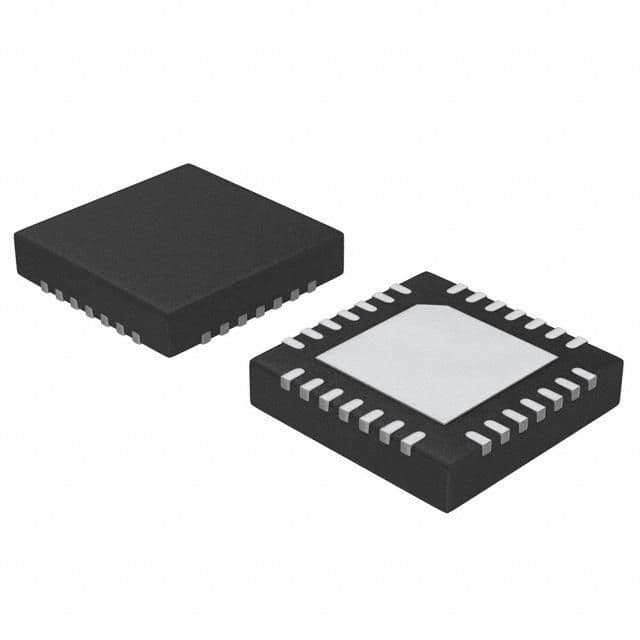

Product Images
