Microchip

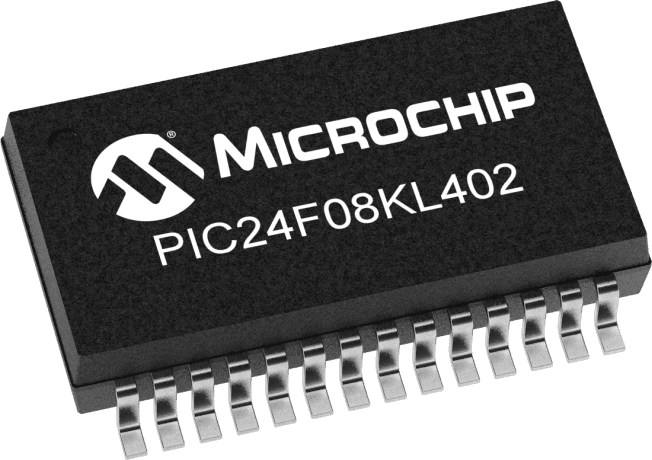

PIC24F08KL402-I/SS
16-BIT, FLASH, 32 MHz, MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Frequency32MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip PIC24F08KL402-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of Programmable I/O
24
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F08KL402-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F08KL402-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
