16-bit FLASH microcontroller featuring a 32MHz core frequency. Offers 1.5KB RAM and 16KB FLASH memory. Supports I2C, SPI, IrDA, and UART/USART interfaces. Includes 18 programmable I/O pins, 3 timers/counters, and a watchdog timer. Operates from 1.8V to 3.6V supply voltage, with a temperature range of -40°C to 85°C. Surface mountable in a 20-pin SSOP package.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24F16KA101T-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
32kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
18
Number of Programmable I/O
18
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1.5KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA101T-I/SS Datasheet
Download the complete datasheet for Microchip PIC24F16KA101T-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

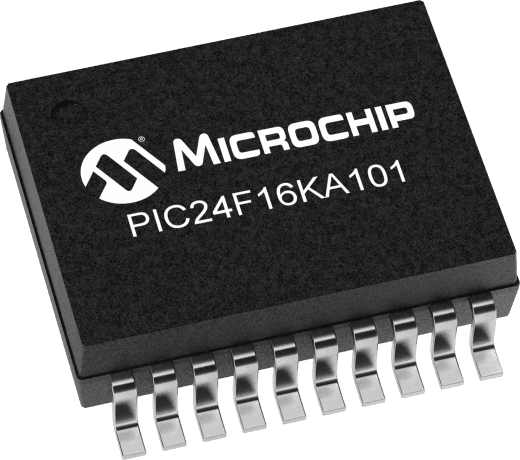

Product Images
