16-bit microcontroller featuring 16KB FLASH, 2KB RAM, and 512B EEPROM. Operates at up to 32MHz with 16 MIPS performance. Includes a 12-bit ADC and CTMU. Offers I2C, SPI, USART, IrDA, and UART interfaces. Available in a PDIP package with 18 programmable I/Os and 5 timers.
Frequency32MHz
PackagePDIP
Quick Jump:
Technical Specifications
Microchip PIC24F16KA301-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, USART, IrDA, UART
Max Frequency
8MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of I/Os
18
Number of Programmable I/O
18
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
No
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC24F16KA301-E/P Datasheet
Download the complete datasheet for Microchip PIC24F16KA301-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

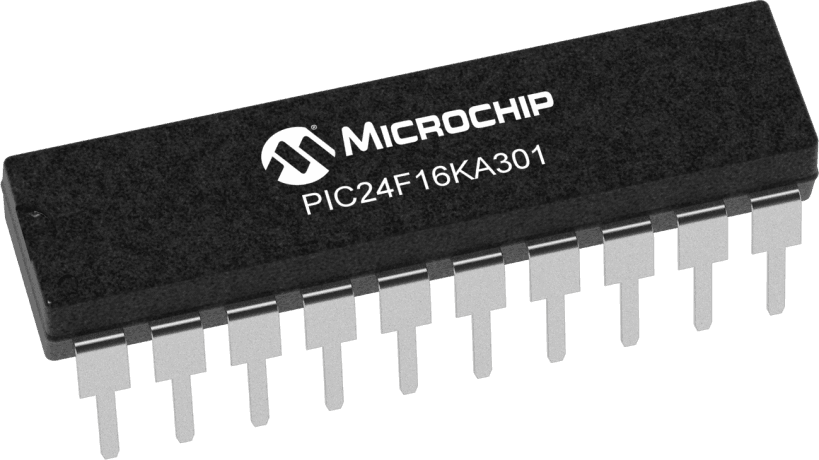

Product Images
