16-bit microcontroller featuring a 32MHz core frequency and 16KB of FLASH memory. This through-hole component offers 18 I/O pins, including 17 programmable, and supports I2C, SPI, UART, IrDA, and USART interfaces. Integrated peripherals include 5 timers/counters, Brown-out Detect/Reset, POR, PWM, WDT, and HLVD. Operating voltage ranges from 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24F16KA301-I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Mount
Through Hole
Number of I/Os
18
Number of Programmable I/O
17
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24F16KA301-I/P Datasheet
Download the complete datasheet for Microchip PIC24F16KA301-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

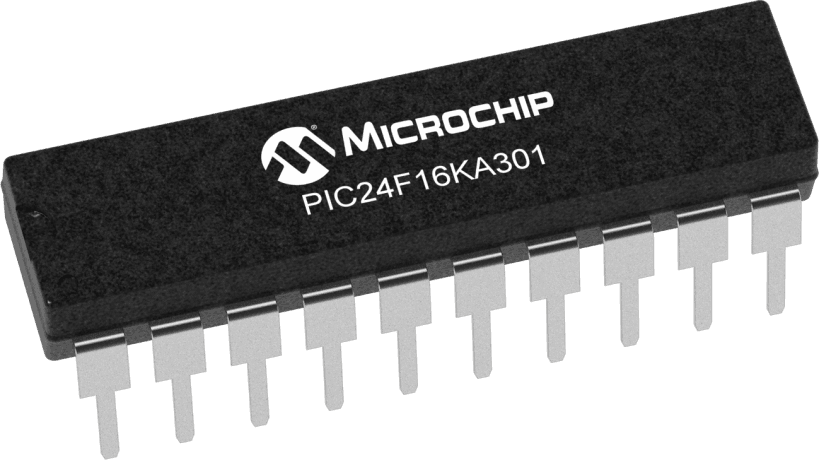

Product Images
